C-134 | PRIER's Original Design

PRIER C-134 provides a year round source of water to areas of structures that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. Ordering the C-234 gives you the same style hydrant but with a vandalproof extended lockshield and operating key.

The PRIER C-134 is the original freezeless hydrant that is made in the same heavy pattern fashion that made it famous. It is available in stock lengths from 1-1/2" to 24". Longer sizes are available on request.

Additional Info

Prier has manufactured the C-134 Freezeless Hydrants from 1949 until today. This Freezeless Hydrant has truly passed the tests of time. It is a simple operating product that is fairly simple to repair.

Possible Repair Issues for the C-134 Freezeless Wall Hydrant:

C_134 support

1. When the water is running, water leaks out from behind the handle [VIDEO]

This is a common maintenance occurrence for any packed valve of any brand or manufacture. It is overcome by simply tightening the packing nut with a crescent wrench. This will force the packing tighter around the stem to eliminate leakage.

Occasionally, the packing will need to be replaced if the packing nut has been repeatedly tightened.

The packing kit required for this reapir is part number C-134KT-803.

C-134KT-803 Packing Kit

C-134KT-803



READMORE

2. The hydrant drips after shutoff [VIDEO]

A freezeless wall hydrant shuts off inside the heated portion of the structure therefore, the water inside the hydrant will drain out after shutoff. The shutoff point could be any distance from 4" to 24" inside the structure. This installation should also be pitched to allow the water to easily drain out of the hydrant. The hydrant may drip for up to 60 seconds after shutoff. If the water continues to drip after that time, you most likely need to replace the bibb washer.

To determine which bibb washer your hydrant requires, you need to determine the type of stem in the hydrant. That can be accomplished in a few different manners.

   1.   Determine the date of installation:

  1. Before 1972, PRIER utilized a 1/4 L beveled bibb washer for freezeless hydrants. The appropriate kit for this item is part number C-135KT-802.

C-135KT-802

  1. After 1972 PRIER used a OO beveled bibb washer for this style freezeless hydrant. The appropriate kit for this item is part number C-134KT-802.

C-134KT-802





  2.   Determine the type of stem inside the freezeless hydrant

In order to distinguish the proper replacement bibb washer, you will need to determine the following:

  1. The length of the stem, from brass tip to brass tip. Do not include the rubber bibb washer in this measurement.
  2. The "A" Dimension as shown on the picture below. This "A" Dimension will either be 1/2" or 9/16". A caliper may be necessary to determine this dimension.
  3. Using the acquired dimensions, determine which bibb washer is required from the chart below:







 "A"

CC

4"

6"

8"

10"

12"

14"

18"

24"

B Style 1954-1961

9/16"

  8 1/16" 10 1/16" 12 1/16" 14 1/16" 16 1/16" 18 1/16" 22 1/16" 28 1/16"

C Style 1961-1963

9/16"

  7 1/16" 9 1/16" 11 1/16" 13 1/16" 15 1/16" 17 1/16" 21 1/16" 27 1/16"

D Style 1963-1972

 9/16"

  7 5/8" 9 5/8" 11 5/8" 13 5/8" 15 5/8" 17 5/8" 21 5/8" 27 5/8"

E Style 1972-2013

1/2"

5 1/16" 7 9/16" 9 9/16" 11 9/16" 13 9/16" 15 9/16" 17 9/16" 21 9/16" 27 9/16"

G Style 2013-Present



3/8" 7/8" 7/8" 10 7/8" 12 7/8" 14 7/8" 16 7/8" 20 7/8" 26 7/8"



B, C & D style stems use the 1/4L Beveled Bibb Washer, PRIER part number C-135KT-802.

This bibb washer is a standard "1/4 L" Beveled Bibb Washer, available from your local plumbing wholesaler.

C-135KT-802 Replacement Bibb Washer Kit



C-135KT-802





E & G style stems require the "OO" Beveled Bibb Washers, PRIER part number C-134KT-802.

The bibb washer used on this item is a standard "OO" Beveled Bibb Washer, available at your local plumbing wholesaler.

C-134KT-802 Replacement Bibb Washer

C-134KT-802









READMORE

3. Water is leaking from the hydrant inside my house.

Unfortunately, your freezeless hydrant is broken, most likely beyond repair. This happens when the water becomes trapped within the hydrant. The water freezes, expands and ruptures the copper shaft of the hydrant located on the inside the structure. The most common reason for this problem is leaving the garden hose attached during freezing weather, or the hydrant was not installed with the proper drainage pitch.

DO NOT OPERATE THE HYDRANT IF THIS HAS OCCURRED.

Please remove the handle to prevent accidental operation until the problem is repaired by your plumber.

READMORE

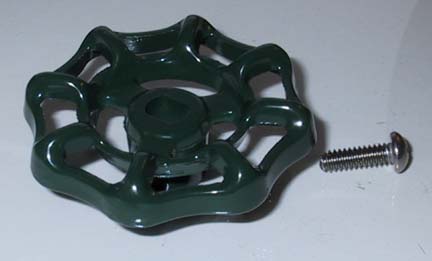

4. The handle is missing from my hydrant

For any one of numerous reasons, your handle may be missing. PRIER's handle is unique to our products; it has two flat and two round sides. This style handle mates perfectly with our stem-end for a snug fit and years of reliable operation.

The required handle kit is part number C-134KT-805.

C-134KT-805 Replacement PRIER Handle

C-134KT-805

READMORE

5. How do I convert my hydrant to loose key?

PRIER freezeless hydrants and angle sill faucets can be converted after installation from handle operated to a loose key operation. This design allows for operation only with the provided operating key. It prevents operation of the freezeless hydrant or angle sill faucet by vice grips or needle nose pliers.

Commonly, this change occurs to prevent unauthorized usage of the product. To convert to the loose key vandalproof option, part number C-134KT-804 is required.

C-134KT-804 Loose Key Conversion Kit

C-134KT-804



READMORE

6. The stem end is damaged and I cannot operate the freezeless hydrant

Occasionally the stem of the PRIER hydrant gets damaged beyond repair. This is most commonly caused by the hydrant being operated by pliers and damage to the brass on the end.

To determine the proper replacement stem, you need to determine the following:

1. Overall length (OAL) of the stem, from tip to brass tip. Do not include the rubber bibb washer in this measurement.

2. The "A" Dimension as shown on the picture below. This "A" Dimension will either be 1/2" or 9/16". A caliper may be necessary to determine this dimension.

3. Using the acquired dimensions, determine which stem is required from the chart below:


Style Part Number Description
B C-134BS04 4" C-134, 8 1/16" Overall Length
B C-134BS06 6" C-134, 10 1/16" Overall Length
B C-134BS08 8" C-134, 12 1/16" Overall Length
B C-134BS10 10" C-134, 14 1/16" Overall Length
B C-134BS12 12" C-134, 16 1/16" Overall Length
B C-134BS14 14" C-134, 18 1/16" Overall Length
B C-134BS18 18" C-134, 22 1/16" Overall Length
B C-134BS24 24" C-134, 28 1/16" Overall Length
C C-134CS04 4" C-134, 7 1/16" Overall Length
C C-134CS06 6" C-134, 9 1/16" Overall Length
C C-134CS08 8" C-134, 11 1/16" Overall Length
C C-134CS10 10" C-134, 13 1/16" Overall Length
C C-134CS12 12" C-134, 15 1/16" Overall Length
C C-134CS14 14" C-134, 17 1/16" Overall Length
C C-134CS18 18" C-134, 21 1/16" Overall Length
C C-134CS24 24" C-134, 27 1/16" Overall Length
D C-134DS04 4" C-134, 7 5/8" Overall Length
D C-134DS06 6" C-134, 9 5/8" Overall Length
D C-134DS08 8" C-134, 11 5/8" Overall Length
D C-134DS10 10" C-134, 13 5/8" Overall Length
D C-134DS12 12" C-134, 15 5/8" Overall Length
D C-134DS14 14" C-134, 17 5/8" Overall Length
D C-134DS18 18" C-134, 21 5/8" Overall Length
D C-134DS24 24" C-134, 27 5/8" Overall Length
E 231-01CC Close Coupled C-134, 5 1/16" Overall Length
E 231-0104 4" C-134, 7 9/16" Overall Length
E 231-0106 6" C-134, 9 9/16" Overall Length
E 231-0108 8" C-134, 11 9/16" Overall Length
E 231-0110 10" C-134, 13 9/16" Overall Length
E 231-0112 12" C-134, 15 9/16" Overall Length
E 231-0114 14" C-134, 17 9/16" Overall Length
E 231-0118 18" C-134, 21 9/16" Overall Length
E 231-0124 24" C-134. 27 9/16" Overall Length
G 231-11CC Close Couple Diamond Series C-134, 1/4" Overall Length
G 231-1104 4" Diamond Series C-134, 6 3/4" Overall Length
G 231-1106 6" Diamond Series C-134, 3/4" Overall Length
G 231-1108 8" Diamond Series C-134, 10 3/4" Overall Length
G 231-1110 10" Diamond Series C-134, 12 3/4" Overall Length
G 231-1112 12" Diamond Series C-134, 14 3/4" Overall Length
G 231-1114 14" Diamond Series C-134, 13/4" Overall Length
G 231-1116 16" Diamond Series C-134, 18 3/4" Overall Length
G 231-1118 18" Diamond Series C-134, 20 3/4" Overall Length
G 231-1120 20" Diamond Series C-134, 22 3/4" Overall Length
G 231-1122 22" Diamond Series C-134, 24 3/4" Overall Length
G 231-1124 24" Diamond Series C-134, 23/4" Overall Length
READMORE

7. I need a complete rebuild kit

The complete repair kit for the PRIER C-134 Freezeless Wall Hydrant is part number C-134KT-807. It contains all wearing parts for the item.

C-134KT-807 Complete Rebuild Kit for C-134

C-134KT-807

READMORE
